Suntask new product CPC heat pipe solar collector with high power output

FOB Reference Price:Get Latest Price
US $55-398 / Sets | 2 Set/Sets Sales Promotion, 10% discount (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Suntask or OEM
Model Number:
SHC
Type:
Manifold Collector
Application:
Water Heater
Pipe Material:
Copper
copper:
TU1
frame:
aluminum alloy
tube:
heat pipe +three target vacuum tube
header diamter:
14mm
connects:
aluminum fin complete
insulation:
glass fibre
reflector:
CPC reflector
SupplyAbility
SupplyAbility:
280000 Set/Sets per Year 35000sets/month
Packaging & Delivery
Packaging Details
standard export cartons, or accord to customers' demand. OEM and ODM
Port
Shanghai or Ningbo
Lead Time :
10days after place the order

Suntask new product CPC heat pipe solar collector with high power output



New heat pipe solar collector with CPC reflector, with big aperture area, for Poland and other European countries mainly.

1. High efficiency!

2. High stagnation temperature.

3. Easy to pack and to install.

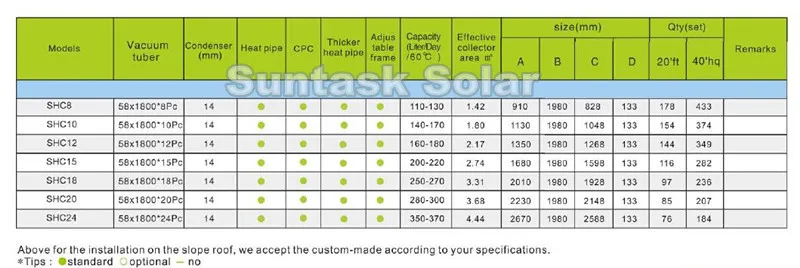

Model No.:

SHC-8            58*1800*8pcs of heat pipe vacuum tube    with CPC reflector
SHC-9            58*1800*9pcs of heat pipe vacuum tube    with CPC reflector
SHC-10          58*1800*10pcs of heat pipe vacuum tube    with CPC reflector
SHC-12          58*1800*12pcs of heat pipe vacuum tube    with CPC reflector
SHC-14          58*1800*14pcs of heat pipe vacuum tube    with CPC reflector
SHC-15          58*1800*15pcs of heat pipe vacuum tube    with CPC reflector
SHC-16          58*1800*16pcs of heat pipe vacuum tube    with CPC reflector
SHC-18          58*1800*18pcs of heat pipe vacuum tube    with CPC reflector
SHC-20          58*1800*20pcs of heat pipe vacuum tube    with CPC reflector
SHC-21          58*1800*21pcs of heat pipe vacuum tube    with CPC reflector
SHC-22          58*1800*22pcs of heat pipe vacuum tube    with CPC reflector

SHC-24          58*1800*24pcs of heat pipe vacuum tube    with CPC reflector



For example, the efficiency for SHC-24( 24tubes) can be twice as much as the traditional models.



Technical parameters:

a.Manifold( interior): red copper

b.Manifold( exterior): aluminum alloy

c.Glass tube dimensions: 58*1800mm

d.Hail resistance: 25mm

e.Max pressure: 12 bar

f.Coating of Vacuum tube: ALN/AIN-SS/CU

g.Heat pipe: anti-freezing >-35 C. degree

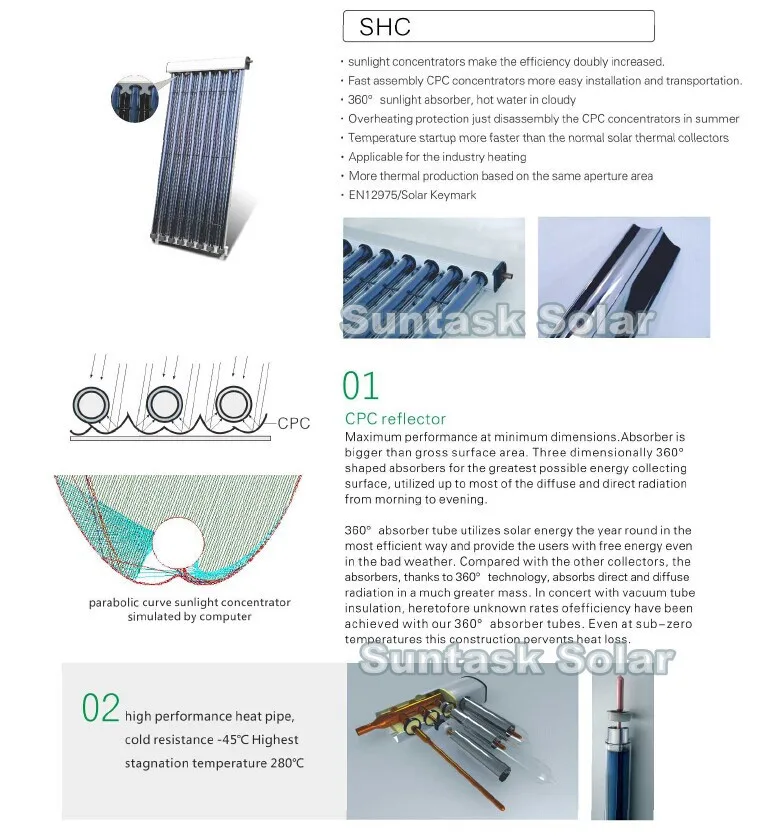

With CPC reflector, feature:

1. 360 degree absorber( CPC reflector)

2. high energy yield

3. high performance ratio

4. easier and faster modular installation

5. long lifetime and stable service
